Step-by-Step RAC TDE Configuration for Oracle Databases

I recently configured TDE on a two-node Oracle RAC ( CDB/PDB setup), and I decided to put together this step-by-step guide to help anyone going through the same journey. The steps are simple once you understand the flow, so let’s walk through the entire process.

Note:- Before implementing TDE, always verify the current database configuration. Check whether TDE is already set up or not. I’ve seen many cases where DBAs make mistakes simply because they skip this basic step. In Oracle 19c and later, the easiest way to confirm is by checking the wallet_root parameter:

SQL> show parameter wallet_root;

NAME            TYPE    VALUE
--------------- ------- ------------------------------
wallet_root     string

1.Create the Wallet Directory on Both Nodes

First, create a folder on each RAC node where the TDE wallet files will be stored. Make sure the directory path is the same on both nodes.

Node 1

[oracle@discoveryrac1 admin]$ mkdir -p /u02/app/oracle/admin/wallet/tde
[oracle@discoveryrac1 admin]$ cd /u02/app/oracle/admin/wallet/tde/
[oracle@discoveryrac1 tde]$ pwd
/u02/app/oracle/admin/wallet/tde

Node 2

[oracle@discoveryrac2 ~]$ cd /u02/app/oracle/admin
[oracle@discoveryrac2 admin]$ mkdir -p wallet/tde
[oracle@discoveryrac2 admin]$ cd wallet/tde/
[oracle@discoveryrac2 tde]$ pwd
/u02/app/oracle/admin/wallet/tde

This directory will hold files like ewallet.p12 and cwallet.sso.

2.Check Database Mode and Wallet Root

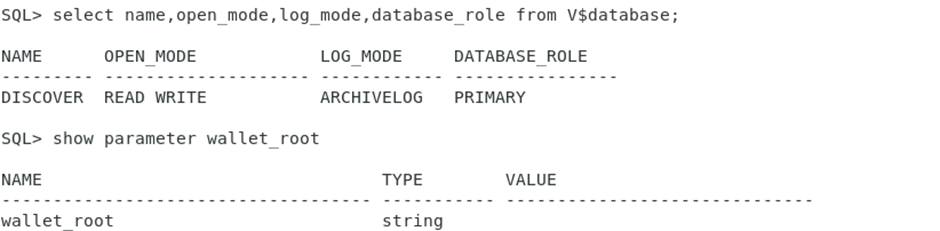

Verify that the DB is open in READ WRITE mode & wallet_root parameter is empty at this point.

3.Set WALLET_ROOT

This tells Oracle where the wallet directory will reside & it’s a static parameter that needs to be reboot the database.

SQL> alter system set WALLET_ROOT="/u02/app/oracle/admin/wallet" scope=spfile sid='*';
System altered.

4.Restart the RAC Database via SRVCTL

[oracle@discoveryrac1 tde]$ srvctl config database
discover
[oracle@discoveryrac1 tde]$ srvctl stop database -d discover
[oracle@discoveryrac1 tde]$ srvctl status database -d discover
Instance discover1 is not running on node discoveryrac1
Instance discover2 is not running on node discoveryrac2
[oracle@discoveryrac1 tde]$ srvctl status database -d discover
Instance discover1 is running on node discoveryrac1
Instance discover2 is running on node discoveryrac2

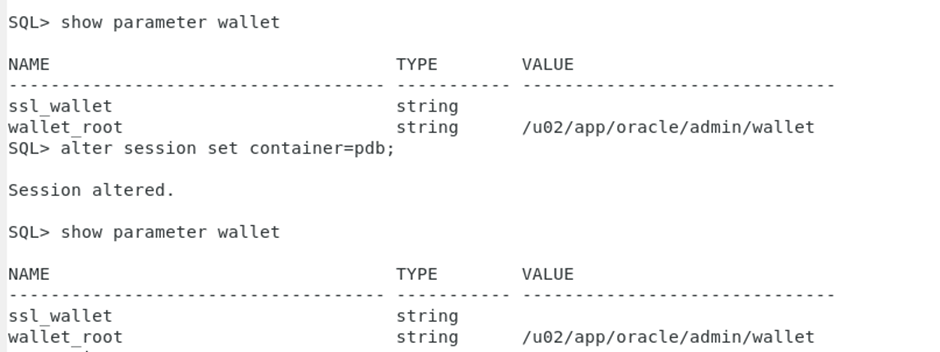

After startup, check again CDB & PDB level. You should now see the path reflected correctly.

Note:-Before creating the keystore, check that the PDBs are opened; otherwise, the keystore operations may not apply

5. Create the TDE Keystore

First, set tde_configuration parameter

TDE_CONFIGURATION to set the type of keystore that is used for Transparent Data Encryption (TDE) by the root container; united PDBs inherit the value from the root container, isolated PDBs can be set individually.

SQL> alter system set TDE_CONFIGURATION="KEYSTORE_CONFIGURATION=FILE" sid='*';

System altered.

Create the TDE Keystore

Oracle creates the keystore file under following path: /u02/app/oracle/admin/wallet/tde

SQL> ADMINISTER KEY MANAGEMENT CREATE KEYSTORE IDENTIFIED BY discovery;

keystore altered.

SQL> ADMINISTER KEY MANAGEMENT SET KEYSTORE OPEN IDENTIFIED BY discovery container=ALL;

keystore altered.

Verify the status

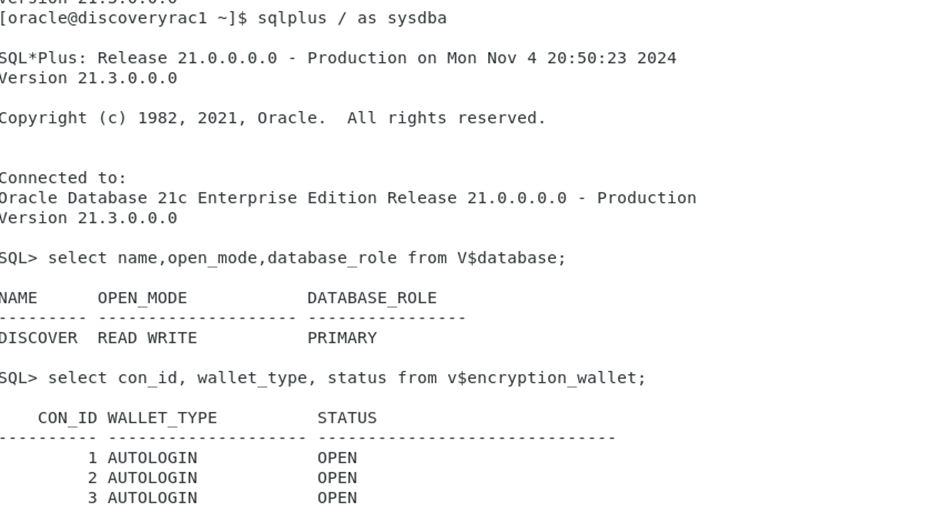

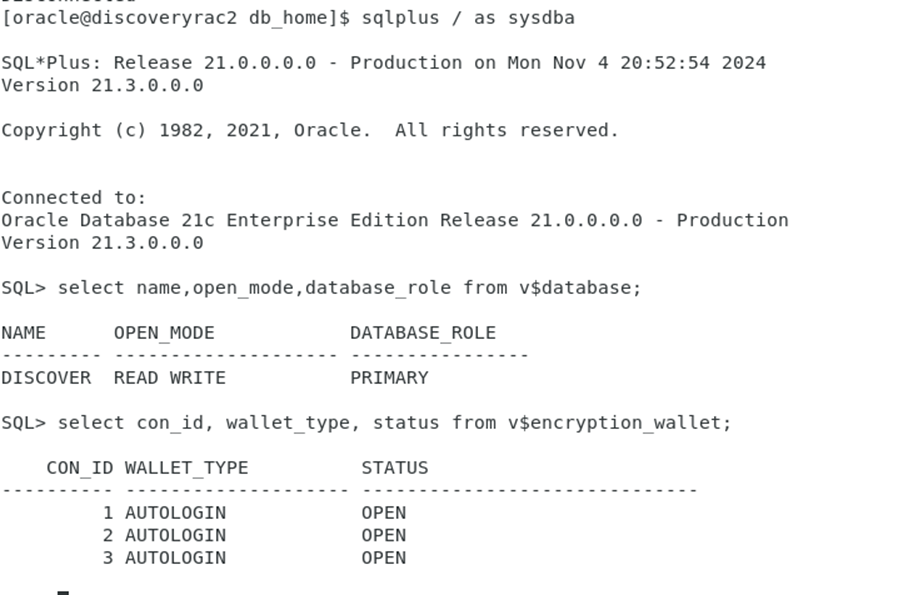

SQL> select con_id, wallet_type, status from v$encryption_wallet;

    CON_ID WALLET_TYPE		STATUS
---------- -------------------- ------------------------------
	 1 PASSWORD		OPEN_NO_MASTER_KEY
	 2 PASSWORD		OPEN_NO_MASTER_KEY
	 3 PASSWORD		OPEN_NO_MASTER_KEY

6.Create the Master Encryption Key

This key is what will actually encrypt your tablespaces or columns:

SQL> ADMINISTER KEY MANAGEMENT SET KEY IDENTIFIED BY discovery WITH BACKUP container=ALL;

keystore altered.

Verify the status

SQL> select con_id, wallet_type, status from v$encryption_wallet;

    CON_ID WALLET_TYPE		STATUS
---------- -------------------- ------------------------------
	 1 PASSWORD		OPEN
	 2 PASSWORD		OPEN
	 3 PASSWORD		OPEN

7.Enable Auto-Login Wallet

This step makes easier because you won’t have to manually open the wallet after every restart.

SQL> ADMINISTER KEY MANAGEMENT CREATE AUTO_LOGIN KEYSTORE FROM KEYSTORE IDENTIFIED BY discovery;

keystore altered.

8.Copy Wallet Files to the Second RAC Node

Since RAC has multiple instances, both nodes need the exact same wallet files.

[oracle@discoveryrac1 tde]$ scp ewallet_2024110317141637.p12 ewallet.p12 cwallet.sso oracle@discoveryrac2:/u02/app/oracle/admin/wallet/tde/
ewallet_2024110317141637.p12                                                  100% 3995     6.9MB/s   00:00
ewallet.p12                                                                   100% 6747    13.5MB/s   00:00
cwallet.sso                                                                   100% 6792    14.9MB/s   00:00
[oracle@discoveryrac1 tde]$

Verify the status

SQL> select con_id, wallet_type, status from v$encryption_wallet;

    CON_ID WALLET_TYPE		STATUS
---------- -------------------- ------------------------------
	 1 PASSWORD		OPEN
	 2 PASSWORD		OPEN
	 3 PASSWORD		OPEN

SQL> administer key management set keystore close identified by discovery container=ALL;

keystore altered.

SQL> select con_id, wallet_type, status from v$encryption_wallet;

    CON_ID WALLET_TYPE		STATUS
---------- -------------------- ------------------------------
	 1 AUTOLOGIN		OPEN
	 2 AUTOLOGIN		OPEN
	 3 AUTOLOGIN		OPEN

Congratulations! With these steps completed, TDE is successfully configured
