Tablespace Monitoring Script for Oracle Database

Monitoring tablespace usage in an Oracle database is essential for maintaining optimal performance and preventing space-related issues. This guide will walk you through creating a SQL script and a shell script to help you easily monitor your tablespaces.

Explanation:

• Permanent Tablespaces: The script retrieves tablespace name, allocated space, used space, free space, and usage percentage. If a tablespace’s usage exceeds 90%, an “ALERT” appears in the output.
• Temporary Tablespaces: Similar to permanent tablespaces

Step 1: Create the SQL Script (tbs.sql)

Open a terminal and create the tbs.sql file using vi:

vi tbs.sql

Press i to enter insert mode, and then paste the following SQL code:

SET PAGESIZE 50 LINESIZE 100 COLSEP '|'

COLUMN tablespace_name FORMAT A20
COLUMN allocated_mb FORMAT 999,999
COLUMN used_mb FORMAT 999,999
COLUMN free_mb FORMAT 999,999
COLUMN pct_used FORMAT 999.99
COLUMN alert FORMAT A10

SELECT
    df.tablespace_name,
    ROUND(SUM(df.bytes) / (1024 * 1024), 2) AS allocated_mb,
    ROUND(SUM(df.bytes - NVL(fs.bytes, 0)) / (1024 * 1024), 2) AS used_mb,
    ROUND(SUM(NVL(fs.bytes, 0)) / (1024 * 1024), 2) AS free_mb,
    ROUND((SUM(df.bytes - NVL(fs.bytes, 0)) / SUM(df.bytes)) * 100, 2) AS pct_used,
    CASE
        WHEN ROUND((SUM(df.bytes - NVL(fs.bytes, 0)) / SUM(df.bytes)) * 100, 2) >= 90 THEN 'ALERT'
        ELSE ''
    END AS alert FROM dba_data_files df LEFT JOIN (SELECT tablespace_name,file_id,SUM(bytes) AS bytes
    FROM dba_free_space GROUP BY tablespace_name, file_id) fs ON df.file_id = fs.file_id AND                        df.tablespace_name = fs.tablespace_name GROUP BY df.tablespace_name ORDER BY pct_used DESC;

SET PAGESIZE 50 LINESIZE 100 COLSEP '|'
COLUMN tablespace_name FORMAT A20
COLUMN temp_allocated_mb FORMAT 999,999
COLUMN temp_used_mb FORMAT 999,999
COLUMN temp_free_mb FORMAT 999,999
COLUMN temp_pct_used FORMAT 999.99
COLUMN temp_alert FORMAT A10

SELECT
    tsh.tablespace_name,
    ROUND(SUM(tsh.bytes_used + tsh.bytes_free) / (1024 * 1024), 2) AS temp_allocated_mb,
    ROUND(SUM(tsh.bytes_used) / (1024 * 1024), 2) AS temp_used_mb,
    ROUND(SUM(tsh.bytes_free) / (1024 * 1024), 2) AS temp_free_mb,
    ROUND((SUM(tsh.bytes_used) / SUM(tsh.bytes_used + tsh.bytes_free)) * 100, 2) AS temp_pct_used,
    CASE
    WHEN ROUND((SUM(tsh.bytes_used) / SUM(tsh.bytes_used + tsh.bytes_free)) * 100, 2) >= 90 THEN 'ALERT'
    ELSE ''
    END AS temp_alert FROM v$temp_space_header tsh GROUP BY  tsh.tablespace_name ORDER BY temp_pct_used DESC;

After pasting, press Esc to exit insert mode. Save and exit vi by typing :wq

Explanation:

• The script connects to the database as sysdba, runs tbs.sql, and outputs the result to tablespace_report.log.
• Finally, it displays the report content in the terminal.

Step 2: Create the Shell Script (monitor_tbs.sh)

Create the monitor_tbs.sh file using vi:

vi monitor_tbs.sh

Press i to enter insert mode, and then paste the following shell script code:

sqlplus -s "/ as sysdba" <<EOF > tablespace_report.log
@tbs.sql
EXIT
EOF
cat tablespace_report.log

After pasting, press Esc to exit insert mode. Save and exit vi by typing :wq

Step 3:Running the Monitoring Script

You can now run the script to generate the tablespace report:

sh monitor_tbs.sh

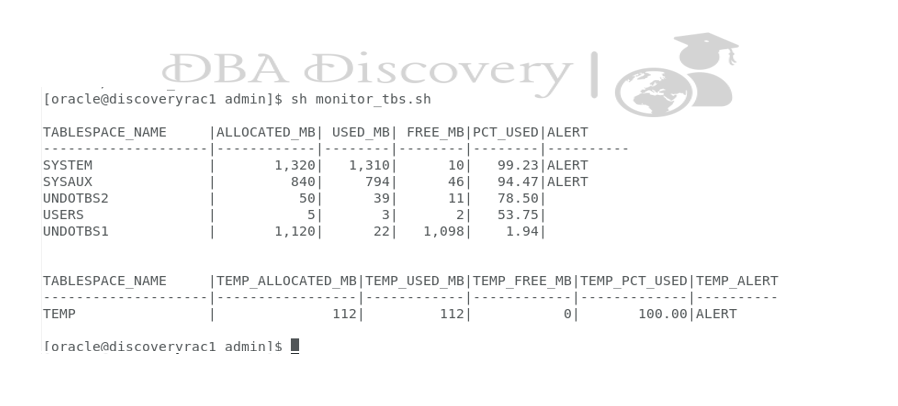

Sample Output:

You can also refer to the image below for a visual representation of the output:

Check the Output

You can also check the contents of the generated log file, tablespace_report.log, to review the tablespace usage information. This log file provides a detailed overview of allocated, used, and free space for each tablespace in your Oracle database.
